Thixotropy: An Important Solder Paste Property

Folks,

To the SMT process engineer, the second most important thixotropic material in their lives is solder paste. If solder paste was not thixotropic, it would be difficult to print and would likely slump after printing the paste. What is a thixotropic material? It is a material that has a low viscosity when it is shear stressed and a high viscosity when it is not shear stressed. So, when the solder paste is forced through the stencil aperture by a squeegee, its viscosity plummets and allows it to fill the aperture. See Figure 1.

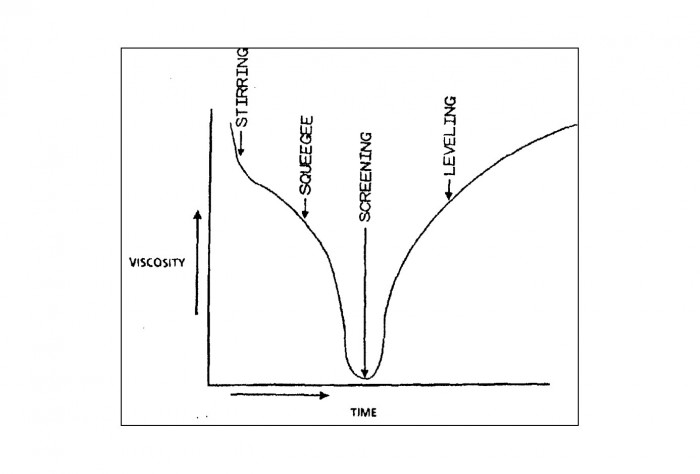

Figure 1. The viscosity of solder paste dramatically decreases as it is forced through the stencil aperatures.

When the stencil is removed, the resulting solder paste deposit experiences no shear stress so the deposit maintains the shape of a “brick.” See Figure 2. So thixotropy is a very helpful property of solder pastes.

Figure 2. After printing, the solder paste viscosity is high, enabling the depost to maintain the brick shape. Figure courtesy of Ron Lasky, Jim Hall, and Phil Zarrow.

If solder paste was dilatant, it would be a disaster. These materials are the opposite of thixotropic materials. They have a low viscosity when not shear stressed and a high viscosity when shear stressed. So they could not be forced through the stencil aperture and, if they could, they would flow all over the board. Cornstarch and water is an example of a dilatant material.

Oh, yes, what is the most important thixotropic material to the SMT process engineer? Their blood. When getting up from lying down, our heart automatically makes a strong “pump” to rush the flow of blood to our head. Since blood is thixotropic, it shear thins and makes it easier for our heart to get the needed blood up to our head. If blood was not thixotropic, we might faint every time we rise from reclining!

Cheers,

Dr. Ron
